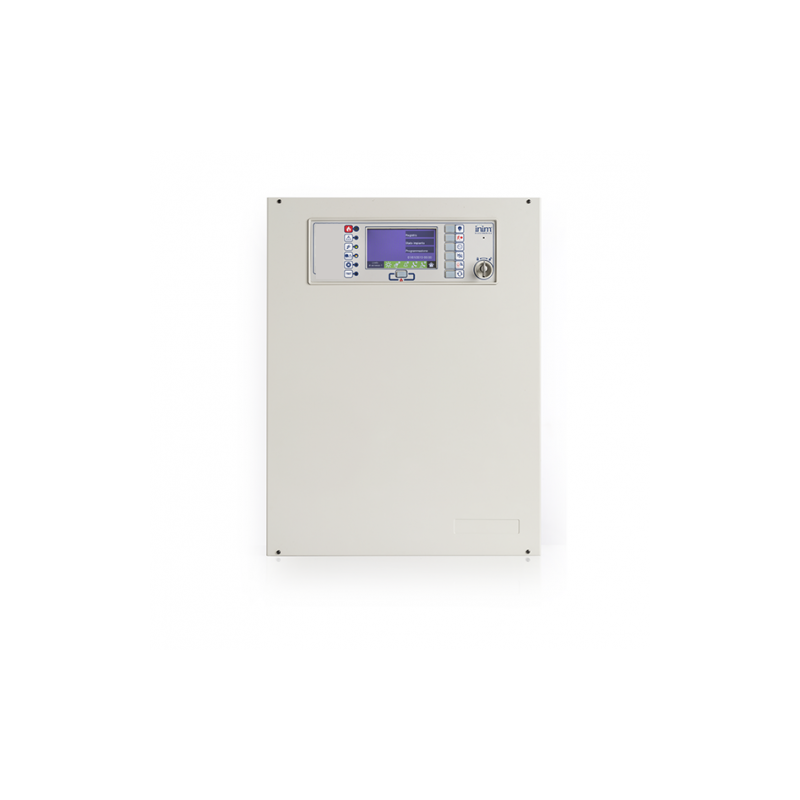

1 loop non-expandable address fire control panel PREVIDIA C100LG

Product reference: PSC100LG
  • 1 loop non-expandable address fire control panel;
  • Maximum 240 addresses;
  • 4.3" touch screen;
  • Large body accommodating 2x17Ah battery;
  • TCP/IP connection for programming and network operations;
  • HORNET+ interface;
  • Power supply 4 A.
Read more

Product information

Previdia Compact analog systems are perfect for small and medium-sized fire protection system solutions. Previdia Comapct combines the innovative features of the Previdia Max system with the user-friendly management of a compact system.

Technical specifications:

  • 1 loop, 240 addresses;
  • Integrated 4A power supply;
  • Integrated battery charger 17Ah;
  • Sturdy metal cabinet;
  • HORNET+ interface for connecting to other control panels or remote keyboards;
  • USB connection for configuration;
  • Micro SD card management for viewing topographic maps, saving and retrieving configurations, storing event logs;
  • 4 internal I/O channels configurable as 1A power outputs, supervised inputs;
  • 4.3" color touch LCD screen;
  • Silicone keys for controlling basic functions;
  • 30 different colored LEDs for 30 zone status signaling, configurable;
  • Programmable via front panel or Previdia/STUDIO configuration software.
  • 1000 configurable zones.
  • 1000 groups of activation outputs.
  • Logic equations for defining the most complex activation conditions.
  • records of the last 2000 events.
  • management of up to 100 access codes.
  • Customizable images, icons representing the status of various elements, texts and function buttons displayed on the screen.

Features

Addresses 240
Loops 1
Control panel type Compact

Sertificates

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
