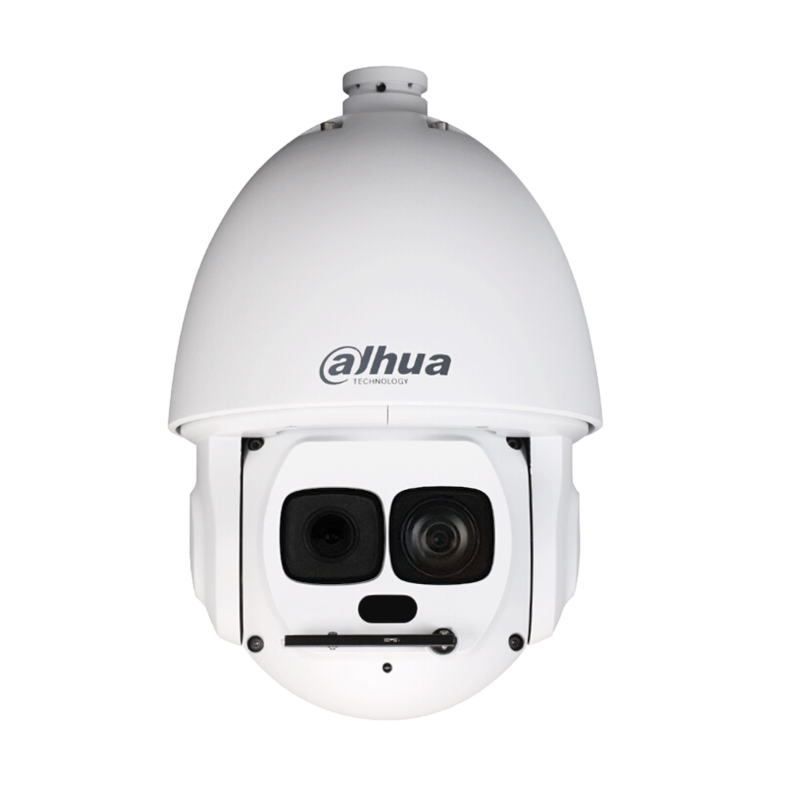

2MP 33x Starlight+ Laser Camera SD6AL233XA-HNR

Product reference: CASD6AL233XA-HNR
  • 1/1.8" 2Megapixel CMOS
  • Powerful 33x optical zoom
  • Starlight+ technology
  • Max. 50/60fps@1080P
  • Deep-learning-based auto tracking and perimeter protection
  • Support Hi-PoE
  • Laser distance up to 550 m
  • SMD PLUS
  • IP67

Charakteristikos

Read more
At stores prices may vary
Price:
€2,854.39
€2,359.00 tax excl.

Product information

2MP 33x Starlight+ Laser WizMind Network PTZ Camera

Camera

Image Sensor

1/1.8" CMOS

Pixel

2MP

Max. Resolution

1920 (H) x 1080 (V)

ROM

4GB

RAM

1GB

Electronic Shutter Speed

1/3–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001 Lux@F1.5
B/W: 0.0001 Lux@F1.5
0 Lux (IR light on)

Illumination Distance

550 m ( 1804 ft )

Illuminator On/Off Control

Zoom Prio/Manual/SmartIR

Illuminator Number

Laser Module

Wiper

Support

Lens

Focal Length

5.8 mm–191.4 mm

Max. Aperture

F1.5–F4.8

Field of View

H: 60.1°–3.2°; V: 35.3° –1.8°; D: 67.9°–3.7°

Optical Zoom

33x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control

Auto/Manual

DORI Distance

Detect

Observe

Recognize

Identify

1655 m
(5429.80 ft)

622 m
(2040.68 ft)

331 m
(1085.96 ft)

165 m
(541.34 ft)

PTZ

Pan/Tilt Range

Pan: 0°–360°
Tilt: -20°–+90°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s
Tilt: 200°/s

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Speed Adjustment

Support

Power-off Memory

Support

Idle Motion

Preset/Tour/Pattern/Scanning

Protocol

DH-SD
Pelco-P/D (auto recognition)

General Intelligence

Event Trigger

Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly.

IVS

Object Abandoned/Missing

Artificial Intelligence

Smart Capture

Support human, motor vehicle and non-motor vehicle image capture.

Perimeter Protection

Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.

SMD PLUS

Support

Auto Tracking

Support

Face Detection

Support

Video

Compression

H.265/H.265+/H.264+/H.264/MJPEG (sub stream)

Streaming Capability

3 streams

Resolution

1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1080p/1.3M/720p (1–50/60 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/D1/CIF (1–25/30 fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Bit Rate

H.265/H.264: 3 kbps–20480 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Region of Interest

Support

Image Stabilization

Electronic

Defog

Support

Digital Zoom

16x

Flip

0°/180°

Privacy Masking

Up to 24 areas

Audio

Compression

G.711A; G.711Mu; G.726; AAC; G.722.1; G.723; G.729; PCM; MPEG2-Layer2

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4-2014

Port

Audio I/O

1 (Line in; bare wire)/1 (Line out; bare wire)

Alarm I/O

7/2

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP

Interoperability

ONVIF Profile S&G&T; CGI

Streaming Method

Unicast/Multicast

User/Host

20 (Total bandwidth 48M)

Storage

FTP; Micro SD card (256G); P2P

Browser

IE7 and newer versions
Chrome 42 and older versions
Firefox 52 and older versions
Safari

Management Software

Smart Player; Smart PSS; DSS; Easy4ip

Mobile Phone

IOS/Android

Power

Power Supply

DC 36 V/2.23 A ± 25%;

Hi-PoE

Power Consumption

20 W
33 W (Laser on)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%RH

Protection

IP67; TVS 8000 V lightning proof; surge protection

Structure

Casing

Metal

Dimensions

Φ240 mm x 382 mm (9.45" × 15.04")

Net Weight

6.75 kg (14.88 lb)

Gross Weight

10.1 kg (22.27 lb)

Features

Lens Motorized lens
Resolution 2MP
Camera type PTZ
Product class PRO
IR distance ≤ 80 m
AI functionality Pro AI
Features Support MicroSD ≤ 256 GB
Features Starlight
