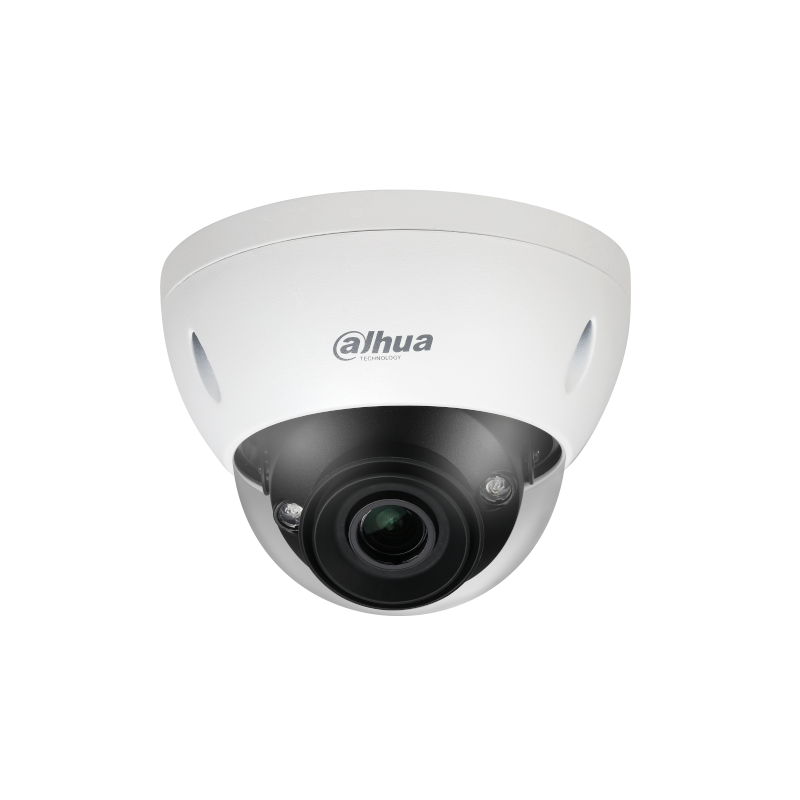

5MP Dome WizMind Network Camera IPC-HDBW5541E-Z5E

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.3 (Color, 30 IRE)
0.0003 lux@F1.3 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

100 m (328.1ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

3 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Module

Focal Length

7 mm–35 mm

Max. Aperture

F1.3

Field of View

Horizontal: 31°–9°
Vertical: 23°–7°
Diagonal: 39°–11°

Iris Control

Auto

Close Focus Distance

W–T: 0.4 m–2 m (1.31 ft–6.56 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

190 m (623.36 ft)

76 m (249.34 ft)

38 m (124.67 ft)

19 m

(62.34 ft)

T

620 m (2034.12 ft)

248 m (813.65 ft)

124 m (406.82 ft)

62 m (203.41 ft)

Smart Event

IVS

Abandoned object; missing object

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

SMD 3.0

Less false alarm, longer detection distance

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting

People Counting

Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps) /1920 × 1080@(1-50/60 fps)
Sub stream: D1@(1 fps–50/60 fps)
Third stream: 1080p@(1 fps–50/60 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

2592 × 1944; 2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input error; intensity change; people counting; face detection; voltage detection; people counting in area; stay detection; people number error detection; queue management

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE8 and later
Chrome
Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1 channel (terminal)

Audio Output

1 channel (terminal)

Alarm Input

1 channels in: 5 mA 3 V–5 VDC

Alarm Output

1 channel out: 300 mA 12 VDC

Power

Power Supply

12 VDC (±25%)&24 VAC (±30%); PoE+ (802.3af); ePoE

Power Consumption

Basic: 4.9 W (12 VDC); 5.1 W (24 VAC); 5.2 W (PoE)Max. (max. stream + intelligence + IR on + focus): 12.4 W (12 VDC); 11.9 W (24 VAC); 11.6 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67; IK10

Structure

Casing

Metal + plastic

Product Dimensions

Φ159 mm × 117.9 mm (6.26" × 4.64")

Net Weight

950 g (2.09 lb)

Gross Weight

1200 g (2.65 lb)
