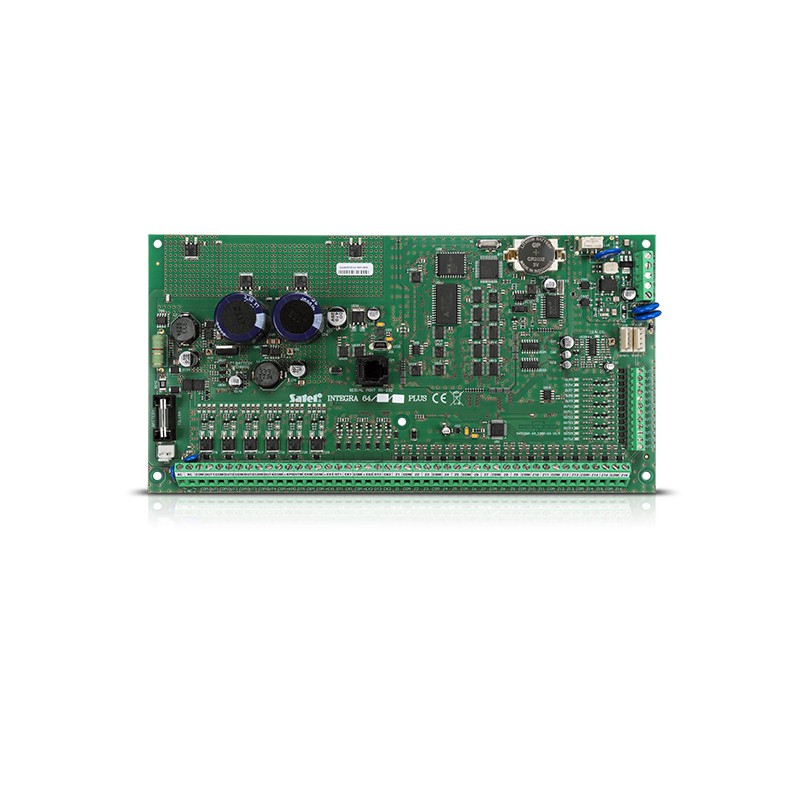

INTEGRA 64 Plus EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs

Product reference: CEINTEGRA 64 PLUS
  • full compliance with EN50131 series of standards for Grade 3 equipment
  • built-in advanced 2 A+1.5 A power supply with extended autodiagnostics
  • up to 64 zones with programmable EOL value and support for 3 EOL configuration
  • USB port for programming via PC
  • up to 32 partitions, 8 objects
  • up to 64 fully programmable outputs
  • dedicated buses for communication with keypads and expansion modules
Read more
At stores prices may vary
Price:
€195.05
€161.20 tax excl.

Product information

  • system operation via touchscreen keypads, LCD keypads, partition keypads, remote control keyfobs or proximity cards
  • remote system operation with PC, smartphone or voice-guided telephone menu
  • 64 independent timers for automatic control
  • access control and home automation features
  • non-volatile event log with 5631 entries, with on-line printing support
  • support for 192+8+1 user codes
  • firmware upgrades via PC
  • option of not reporting possible problems with connecting to the SATEL server as a failure
Installer-defined text messaged
64
Extender circuits
up to 64
Environmental class according to EN50130-5
II
Voice messages
16
Communication buses
1+2
Maximum number of programmable inputs
64
Maximum number of programmable outputs
64
Maximum humidity
93±3%
Maximum current consumption from the battery
200 mA
Maximum current consumption from the 230V network
400 mA
Maximum battery charging current
1500 mA
Keypads
up to 8
Weight
320 g
Battery cut-off voltage (±10%)
10,5 V
Power supply output voltage
10,5…14 V DC
Supply voltage (±15%)
20 V AC, 50-60 Hz
Battery failure voltage threshold (±10%)
11 V
Telephone numbers for notification (voice/PAGER + SMS)
16+16
Carrying capacity of the +EX1 and +EX2 outputs (±10%)
3000 mA
Low current programmable outputs rating
50 mA
High current programmable outputs rating
3000 mA
Carrying capacity of the +KPD output (±10%)
3000 mA
Event log
5631
Objects
8
Current consumption from the 230V network in standby
135 mA
Current consumption from battery - standby
130 mA
Security grade according to EN 50131
Grade 3
Partitions
32
Timers
64
Users + Administrators
192 + 8
Programmable wired inputs
16
Power supply current efficiency (supplying devices + charging batteries)
2000 + 1500 mA
Programmable wired outputs
16
Supplying outputs
3
Board dimensions
264 x 134 mm
Operating temperature range
-10…+55 °C
Recommended transformer type
75 VA

Features

Terminals 16
Partitions 32
