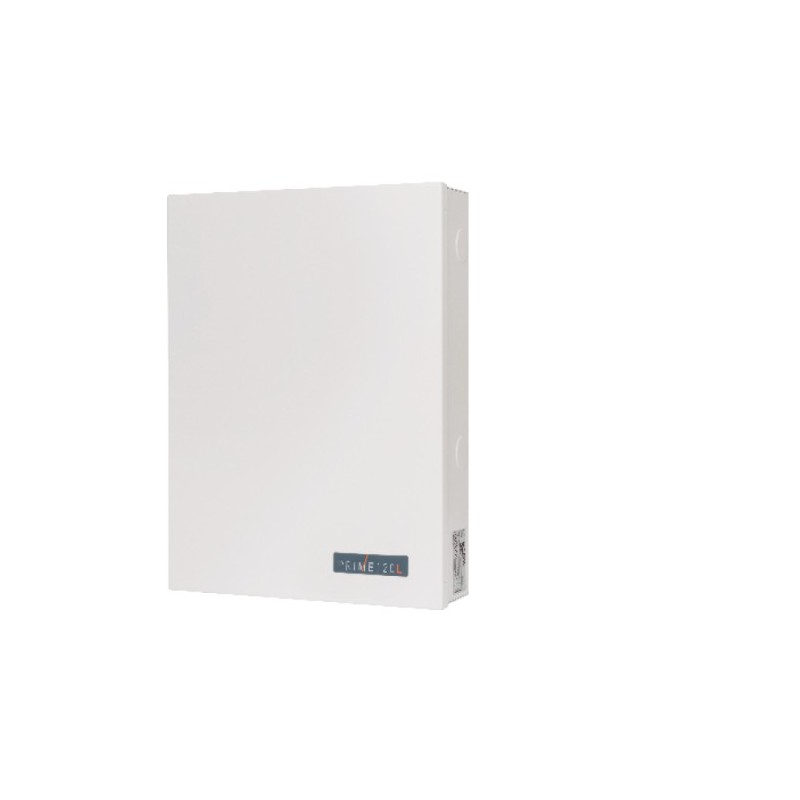

Prime 240 L Anti-intrusion control panel from 10 to 240 terminals, 30 areas, 6.2 A power supply

Product reference: CEPRIME240L
  • intrusion control panel, with 10 terminals;
  • expandable to 240 terminals;
  • 1 dry-contact programmable relay;
  • 30 partitions;
  • 100 user codes;
  • 150 proximity tags;
  • Integrated LAN and USB interface
  • 4000event logged;
Read more

Product information

Main features of Prime systems

PRIME

60 S / 60 L

120 L

240 L

500 L

Hardware features

Maximum number of terminals and number of mappable

or relocatable terminals in the system (note 3)

60*

120*

240*

500*

On-board terminals (which can be configured as input/output)

10 (10)

Programmable relays on the main board

Yes

Programmable open-collector outputs on the main board

 2

Programmable 12 V outputs

 2 (AUX 1, AUX 2)

Manageable partitions

10

20

30

30

Integrated IP connectivity

Yes

Integrated SIA-IP digital communication standard

Yes

Housing for Flex5 expansion board in the enclosure

Yes

Housing for NEXUS device in the enclosure

Yes

Power supply: maximum current for the field devices

2.5 A

5 A

5 A

5 A

Power supply: maximum current for battery recharge

1.2 A

1.2 A

1.2 A

1.2 A

USB port

Yes

Battery-charge monitored by battery temperature sensor

Yes

Battery efficiency test

Yes

AlienMobile and AlienMobile+ User Apps for smartphones or tablets (Android/iOS)

Yes

InimTech Security Installer App for smartphones or tablets (Android/iOS)

Yes

Cloud functions with Inim Cloud services

Yes

Reprogrammability of control panel firmware

Yes

Battery housing

Yes

Dimensions cm (WxHxD)

27.5x37.4x8.6

37.5x46.6x9.2

37.5x46.6x9.2

37.5x46.6x9.2

Weight (without battery)

3.2 Kg

5 Kg

5 Kg

5 Kg

Devices on I-BUS

Self-learning of peripherals on the I-BUS

Yes

Joy, Concept, Alien/S, Alien/G, Aria HG keypads (note 1)

10

15

30

30

nBy proximity readers

20

30

30

60

Flex5 5-terminal expansion boards

100

Ivy sounder/flashers

10

Air2-BS200 transceivers (with automatic channel search)

20

30

30

30

Nexus communicator

1

Air2 series wireless devices

MC200, MC100 and MC300 magnetic contacts, IR100 and XIR200W infrared detectors, XDT200W and DT200T dual technology detectors and FD100 smoke detectors (note 3)

60

120

200

200

ARIA/W wireless keypads for each BS200 (note 1)

4

HEDERA wireless sounder/flashers for each BS200

4

Remote control keyfobs (KF100, KF-Pebble, KF-Ergo) (note 2)

100

200

300

500

Authentication

Installer codes

2

User codes (with associated timers)

100

200

300

500

nKey tag or nCard proximity card (with associated timers) (note 2)

100

200

300

500

Telephone communication

Telephone numbers

15

Integrated Cloud channel

Yes

Phone line availability check

Yes

Automatic voice communicator (SmartLogos30M option,

see also voice functions)

Yes

Integrated automatic digital communicator (ContactID, SIA, pulses)

Yes

Input terminals (zones)

Self-learning of zone balancing •

Yes

Management of two separate zones on each input terminal

Yes

Input terminals on the control panel for shock and roller blind sensors

10

Input terminals on keypad for shock and roller blind sensors

2 for Joy and Aria/HG, 1 for Concept, 1 for nCode/G

Input terminals on expansion board for shock and roller blind sensors (out of 5 available as input/output)

4

Thresholds of programmable input zones

Yes

Calibration of input thresholds •

Yes

Additional functions with optional components

Advanced voice functions with SmartLogos30M board

Yes

GSM functions with Nexus, Nexus/G, Nexus/3G and Nexus/4G modules

Yes

GPRS functions and SIA-IP connectivity with Nexus/G, Nexus/3G and Nexus/4G modules

Yes

Web-server, e-mail, ONVIF cameras, KNX IP standard with PrimeLAN board

Yes

Other features

Weekly timer with two time slots per day (each with 15

exception periods)

20

40

Manual, daily and weekly programmable thermostats with antifreeze feature (Joy/MAX, Alien/S, Alien/G, Aria/HG)

10

15

30

Programmable events with timer and counter management

30

50

60

Management of summer/winter time

Yes

Automatic date/time update with NTP

Yes

Programmable arming scenarios (settings for partition status and output status)

30

50

Types of shortcuts for immediate actions

38

Programmable icons

80

Number of events that can generate actions

8996

Events that can be stored in the register

4000

Choice of events to memorize

Yes

Management of shortcuts via function keys (12) and number keys (10) on Joy, Aria/W and Aria/HG keypads

Yes

Management of shortcuts via LEDs (4) on nBy readers

Yes

Event-based action generation matrix

Yes

Generation of action when the event occurs

Yes

Generation of action when the event restores

Yes

Zone test from keypad

Yes

User-friendly programming software (runs under Windows)

Yes

Certifications

EN50131-3

Grade 3

EN50131-6

Grade 3

Features

Terminals 10-240
Partitions 30

Sertificates
