FireVibes Wirelles System for Fire DetectionCertificates: |
 |
FireVibes is a wireless system for fire safety installations, ideal for those installations that prove difficult for the laying of cables or the connection of devices.
The protocol translator, which connects to and is powered directly from the loop set to Inim protocol, allows communication with up to 128 wireless devices. This can be either direct or through repeater modules (expansions).
The expansions make it possible to extend the signal range and to create a redundant network, that is a network that offers alternative routes in the event of the loss of a node.
FireVibes wireless communication is based on two-way dual channel technology capable of guaranteeing a distance of up to 200 meters between translators/expansions and devices (“field communication”) and up to 1000 meters between translators and expansions (“infrastructure communication”).

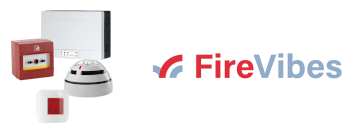

The range of FireVibes wireless devices available includes optical smoke detectors,heat detectors, optical/heat detectors, alarm buttons (call points), input modules and sounders.
FireVibes wireless system main features:
- Maximum 128 devices of any type for a single FireVibes system
- 60 communication channels (between translators and with field devices)
- Scalable architecture
- Redundant communication between expansions
- Search for alternative transmission routes
- Up to 15 expansion boards for each translator
- Up to 32 devices for each translator or expansion
- Up to 8 between expansion
- Infrastructure coverage (between translator and expansions) up to 1000m in open air
- Field coverage (with devices) up to 200m in open air
- Redundancy with dual transmission channel
- Synchronized transmission
- CR123A lithium batteries
- Battery life guaranteed for up to 10 years for input devices
- Battery life guaranteed for up to 5 years for output devices
- Activation of devices within 10 seconds
Take a look at FireVibes products range →
|
Communication channels |
60 communication channels available. These are divided into infrastructure channels, used for communication between translator and expansions (8 pairs), and field channels for communication with field devices (22 pairs). These channels ensure data transmission and do not interfere with external wireless transmissions. This structure permits the scalable architecture of the installation which is thus easily expandable. |
|
Double transmission channel |
The FireVibes system has a redundancy due to a double transmission channel. The dual channel is guaranteed for each translator, expansion or field device. If a channel blocks, it is promptly replaced by another, guaranteeing the completeness of the transmission. |
|
Transmission route search |
The communication between the expansions consists of automatically defined and tested routes starting from the first commissioning. This communication is based on a redundant “mesh” network. If transmission with an expander fails, the system maintains continuity by using an alternate route. |
|
Optimized infrastructure transmission |
The technology of finding the best communication route between the expansions allows to cover transmission inside large buildings. The adopted transmission routes can pass from one expansion to another up to a maximum of 8 steps. The supplied antennas are guaranteed to perform in different frequencies and environments. |
|
Optimized consumption |
FireVibes uses a synchronized communication protocol for both infrastructure and field devices. This allows fast direct fast responses from input devices (detectors, alarm buttons (call points), input modules) and output devices (soumders, flashers) with reduced consumption. |
