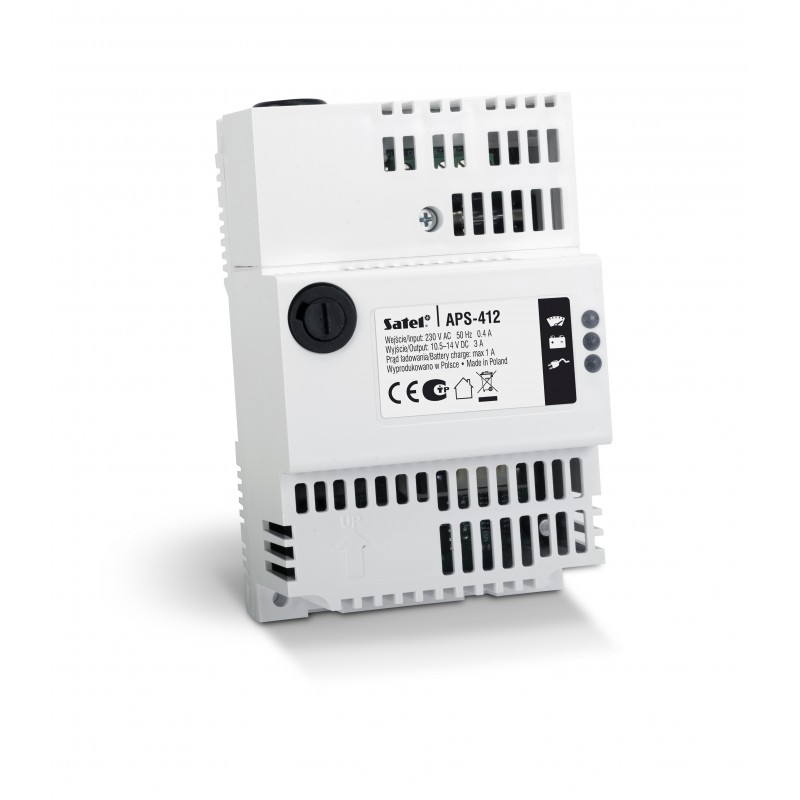

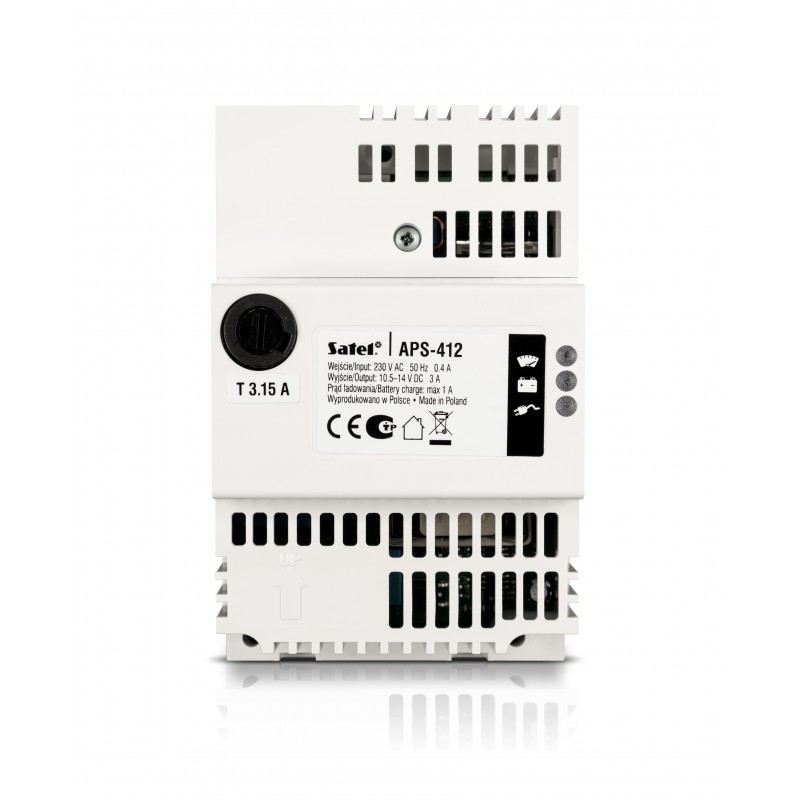

APS-412 Backup power supply

Product reference: MAAPS-412

The switching mode power supply designed to power 12 V devices. It is equipped with a dedicated connector for use with SATEL devices. Its design enables it to be easily installed in the SATEL offered enclosure or on the DIN rail.

  • EN50131-6 Grade 2 compliant
  • high efficiency 12 V DC switching mode power supply, requiring no mains transformer
  • 4 A total output current
  • short circuit and overload protection
Read more
At stores prices may vary
Price:
€69.02
€57.04 tax excl.

Product information

Environmental class
II
Power supply type
A
Enclosure dimensions
77 x 122 x 59 mm
Operating temperature range
-10...+55 °C
Supply voltage
230 V AC
Weight
306 g
Battery failure voltage threshold (±10%)
11,5 V
Battery cut-off voltage (±10%)
10,5 V
Rated output voltage
12 V DC
Output current
4 A
Battery charging current (switchable)
0,5 A / 1 A
Current-carrying capacity: WS, WB, WP (OC type) outputs
50 mA
Current consumption by power supply circuits
57 mA
